1. server.xml 설정
1) 단일인 경우 : ${CATALINA_HOME}/conf/server.xml
2) 멀티 인스턴스인 경우 : ${instance}/conf/server.xml
<GlobalNamingResources>
<!-- Editable user database that can also be used by
UserDatabaseRealm to authenticate users
-->
<Resource name="jdbc/testDS"
auth="Container"
type="javax.sql.DataSource"
maxTotal="100"
maxIdle="30"
maxWaitMillis="10000"
username="testuser"
password="testpassword"
driverClassName="com.mysql.cj.jdbc.Driver"
url="jdbc:mysql://${DB장비_IP}:3306/testdb"/>
</GlobalNamingResources>
참고하면 좋은 내용으로, driverClassName="http://m.mysql.cj.jdbc.Driver"
이렇게 적는 경우는 connector.jar가 8 이상인 경우이며,
driverClassName="http://m.mysql.jdbc.Driver" 이렇게 적는 경우는 jar가 5버전인 경우이다.
context.xml 설정
1) 단일인 경우 : ${CATALINA_HOME}/conf/context.xml
2) 멀티 인스턴스인 경우 : ${instance}/conf/context.xml
<Context>
<!-- Default set of monitored resources. If one of these changes, the -->
<!-- web application will be reloaded. -->
<WatchedResource>WEB-INF/web.xml</WatchedResource>
<WatchedResource>WEB-INF/tomcat-web.xml</WatchedResource>
<WatchedResource>${catalina.base}/conf/web.xml</WatchedResource>
<!--ResourceLink 이 부분을 추가-->
<ResourceLink global="jdbc/testDS" name="jdbc/testDS" type="javax.sql.DataSource"/>
<!-- Uncomment this to enable session persistence across Tomcat restarts -->
<!--
<Manager pathname="SESSIONS.ser" />
-->
</Context>
3. web.xml 설정
${배포애플리케이션}/WEB-INF/web.xml
<web-app xmlns="https://jakarta.ee/xml/ns/jakartaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="https://jakarta.ee/xml/ns/jakartaee
https://jakarta.ee/xml/ns/jakartaee/web-app_6_1.xsd"
version="6.1"
metadata-complete="true">
<display-name>Welcome to Tomcat</display-name>
<description>
Welcome to Tomcat
</description>
<!-- resource-ref를 추가 -->
<resource-ref>
<description>MySQL Datasource</description>
<res-ref-name>jdbc/testDS</res-ref-name>
<res-type>javax.sql.DataSource</res-type>
<res-auth>Container</res-auth>
</resource-ref>
</web-app>
~

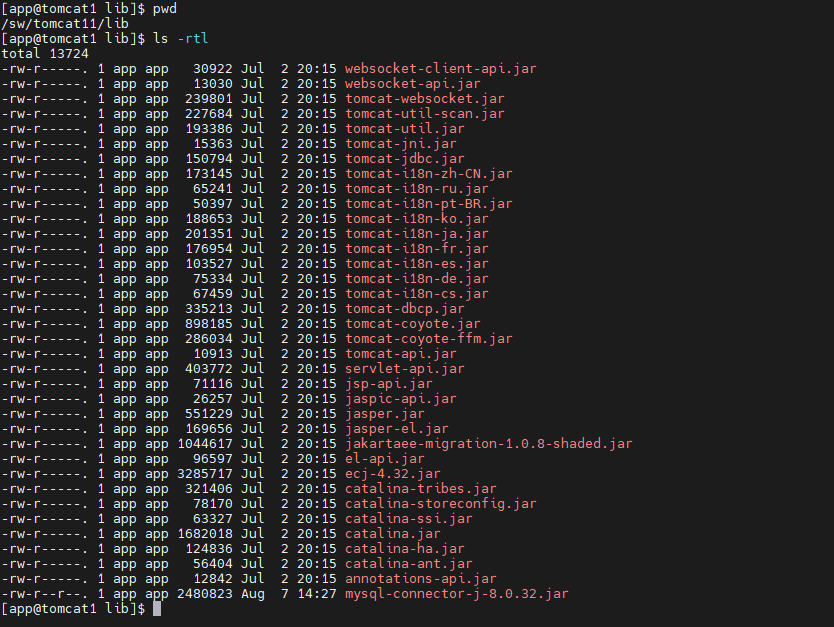

4. mysql connector.jar 파일 $CATALINA_HOME/lib에 추가
최하단의 mysql-connector-j-8.0.32.jar를 넣어줬다.
test.jsp
<%@ page import="java.sql.*, javax.naming.*, javax.sql.*" %>
<html>
<head>
<title>Database Connection Test</title>
</head>
<body>
<%
Connection conn = null;
PreparedStatement pstmt = null;
ResultSet rs = null;
try {
// JNDI 리소스 lookup
InitialContext ctx = new InitialContext();
DataSource ds = (DataSource) ctx.lookup("java:comp/env/jdbc/testDS");
// 데이터베이스 연결
conn = ds.getConnection();
// 쿼리 실행
String sql = "SELECT * FROM mytable";
pstmt = conn.prepareStatement(sql);
rs = pstmt.executeQuery();
// 결과 출력
out.println("<h1>Data from mytable:</h1>");
out.println("<table border='1'>");
out.println("<tr><th>ID</th><th>Name</th></tr>");
while (rs.next()) {
int id = rs.getInt("id");
String name = rs.getString("name");
out.println("<tr><td>" + id + "</td><td>" + name + "</td></tr>");
}
out.println("</table>");
} catch (NamingException e) {
e.printStackTrace();
out.println("JNDI lookup failed: " + e.getMessage());
} catch (SQLException e) {
e.printStackTrace();
out.println("SQL error: " + e.getMessage());
} finally {
// 리소스 해제
if (rs != null) try { rs.close(); } catch (SQLException e) { e.printStackTrace(); }
if (pstmt != null) try { pstmt.close(); } catch (SQLException e) { e.printStackTrace(); }
if (conn != null) try { conn.close(); } catch (SQLException e) { e.printStackTrace(); }
}
%>
</body>
