[JBoss EAP 7.4] ssl 사용하기

[생성과정]
1) openssl 키/인증서 생성
openssl req -newkey rsa:2048 -nodes -keyout server.key -x509 -days 365 -out server.crt

2) java 전용 인증서로 변환
openssl pkcs12 -export -in server.crt -inkey server.key -out keystore.p12 -name key
## 맨 뒤의 key가 alias다

3) jks로 변환
keytool -importkeystore -srckeystore keystore.p12 -srcstoretype PKCS12 -destkeystore keystore.jks -deststoretype JKS



<?xml version='1.0' encoding='UTF-8'?>

<server xmlns="urn:jboss:domain:16.0">
    <extensions>
        <extension module="org.jboss.as.clustering.infinispan"/>
        <extension module="org.jboss.as.clustering.jgroups"/>
        <extension module="org.jboss.as.connector"/>
        <extension module="org.jboss.as.deployment-scanner"/>
        <extension module="org.jboss.as.ee"/>
        <extension module="org.jboss.as.ejb3"/>
        <extension module="org.jboss.as.jaxrs"/>
        <extension module="org.jboss.as.jdr"/>
        <extension module="org.jboss.as.jmx"/>
        <extension module="org.jboss.as.jpa"/>
        <extension module="org.jboss.as.jsf"/>
        <extension module="org.jboss.as.logging"/>
        <extension module="org.jboss.as.mail"/>
        <extension module="org.jboss.as.modcluster"/>
        <extension module="org.jboss.as.naming"/>
        <extension module="org.jboss.as.pojo"/>
        <extension module="org.jboss.as.remoting"/>
        <extension module="org.jboss.as.sar"/>
        <extension module="org.jboss.as.security"/>
        <extension module="org.jboss.as.transactions"/>
        <extension module="org.jboss.as.webservices"/>
        <extension module="org.jboss.as.weld"/>
        <extension module="org.wildfly.extension.batch.jberet"/>
        <extension module="org.wildfly.extension.bean-validation"/>
        <extension module="org.wildfly.extension.clustering.singleton"/>
        <extension module="org.wildfly.extension.clustering.web"/>
        <extension module="org.wildfly.extension.core-management"/>
        <extension module="org.wildfly.extension.discovery"/>
        <extension module="org.wildfly.extension.ee-security"/>
        <extension module="org.wildfly.extension.elytron"/>
        <extension module="org.wildfly.extension.health"/>
        <extension module="org.wildfly.extension.io"/>
        <extension module="org.wildfly.extension.metrics"/>
        <extension module="org.wildfly.extension.request-controller"/>
        <extension module="org.wildfly.extension.security.manager"/>
        <extension module="org.wildfly.extension.undertow"/>
    </extensions>
    <management>
        <security-realms>
            <security-realm name="ManagementRealm">
                <authentication>
                    <local default-user="$local" skip-group-loading="true"/>
                    <properties path="mgmt-users.properties" relative-to="jboss.server.config.dir"/>
                </authentication>
                <authorization map-groups-to-roles="false">
                    <properties path="mgmt-groups.properties" relative-to="jboss.server.config.dir"/>
                </authorization>
            </security-realm>
            <security-realm name="ApplicationRealm">
                <server-identities>
                	<!-- <ssl>에 jks 파일 위치와 alias, 패스워드를 입력 -->

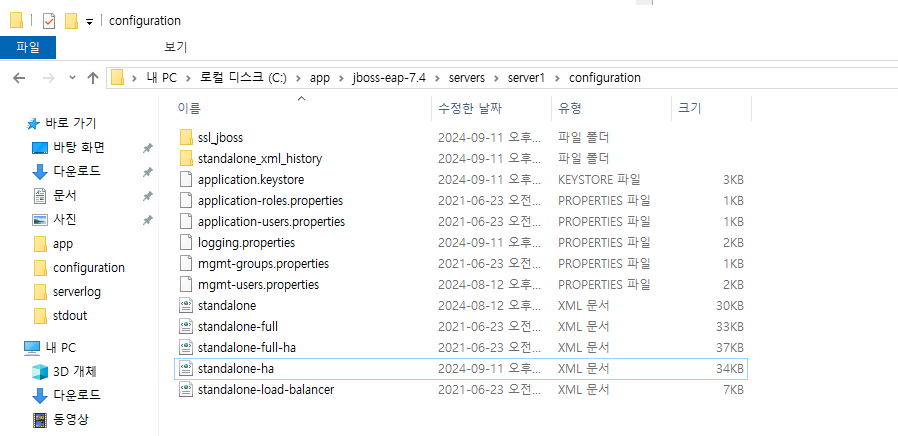

                    <!-- jboss.server.config.dir이 기준점이다 보니, jks 파일은 configuration 경로에 넣어주자 -->
                    <ssl>
                        <keystore path="ssl_jboss\keystore.jks" relative-to="jboss.server.config.dir" keystore-password="123123" alias="key" key-password="123123" generate-self-signed-certificate-host="192.168.56.125"/>
                    </ssl>
                </server-identities>
                <authentication>
                    <local default-user="$local" allowed-users="*" skip-group-loading="true"/>
                    <properties path="application-users.properties" relative-to="jboss.server.config.dir"/>
                </authentication>
                <authorization>
                    <properties path="application-roles.properties" relative-to="jboss.server.config.dir"/>
                </authorization>
            </security-realm>
        </security-realms>

        ...

        <subsystem xmlns="urn:jboss:domain:undertow:12.0" default-server="default-server" default-virtual-host="default-host" default-servlet-container="default" default-security-domain="other" statistics-enabled="${wildfly.undertow.statistics-enabled:${wildfly.statistics-enabled:false}}">
            <buffer-cache name="default"/>
            <server name="default-server">
                <ajp-listener name="ajp" socket-binding="ajp" record-request-start-time="true"/>
                <http-listener name="default" socket-binding="http" record-request-start-time="true" redirect-socket="https" enable-http2="true"/>
	     		<!-- ######### https listener가 살아있는지도 확인 #############-->
                <https-listener name="https" socket-binding="https" ssl-context="applicationSSC" enable-http2="true"/>
                <!-- ################################################# -->
                <host name="default-host" alias="localhost">
                    <access-log directory="${jboss.server.log.dir}/access"/>
                    <http-invoker security-realm="ApplicationRealm"/>
                </host>
            </server>
            <servlet-container name="default">
                <jsp-config/>
                <websockets/>
            </servlet-container>
        </subsystem>
        <subsystem xmlns="urn:jboss:domain:webservices:2.0" statistics-enabled="${wildfly.webservices.statistics-enabled:${wildfly.statistics-enabled:false}}">
            <wsdl-host>${jboss.bind.address:127.0.0.1}</wsdl-host>
            <endpoint-config name="Standard-Endpoint-Config"/>
            <endpoint-config name="Recording-Endpoint-Config">
                <pre-handler-chain name="recording-handlers" protocol-bindings="##SOAP11_HTTP ##SOAP11_HTTP_MTOM ##SOAP12_HTTP ##SOAP12_HTTP_MTOM">
                    <handler name="RecordingHandler" class="org.jboss.ws.common.invocation.RecordingServerHandler"/>
                </pre-handler-chain>
            </endpoint-config>
            <client-config name="Standard-Client-Config"/>
        </subsystem>
        <subsystem xmlns="urn:jboss:domain:weld:4.0"/>
    </profile>

</server>













https 포트가 9443인 것을 확인

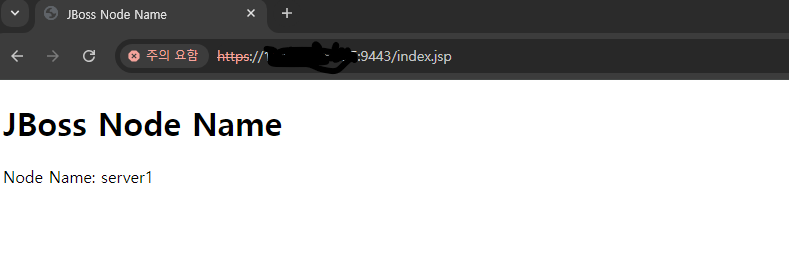

브라우저에서 https 를 통해서 페이지를 호출하면 정상적으로 나오는 것을 확인
